1.The latest system, efficient and stable
2. X, Y axis 30 guide rail, Y axis can be equipped with double guide rails
3.XY reducer drive, Z-axis with brake function

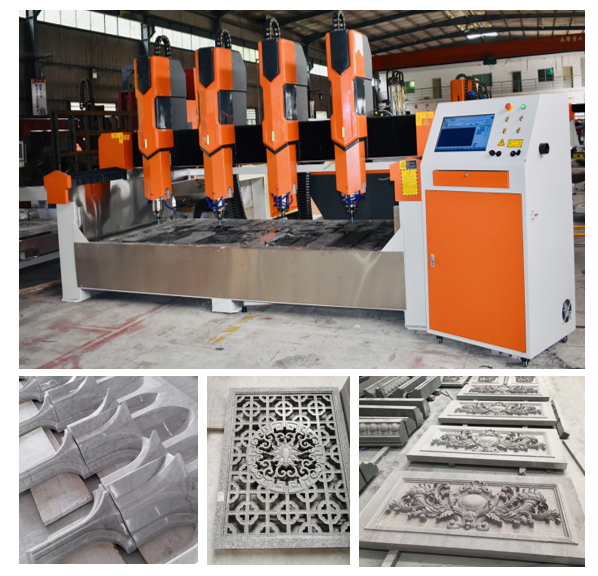

4. Suitable for deep relief processing of exterior walls

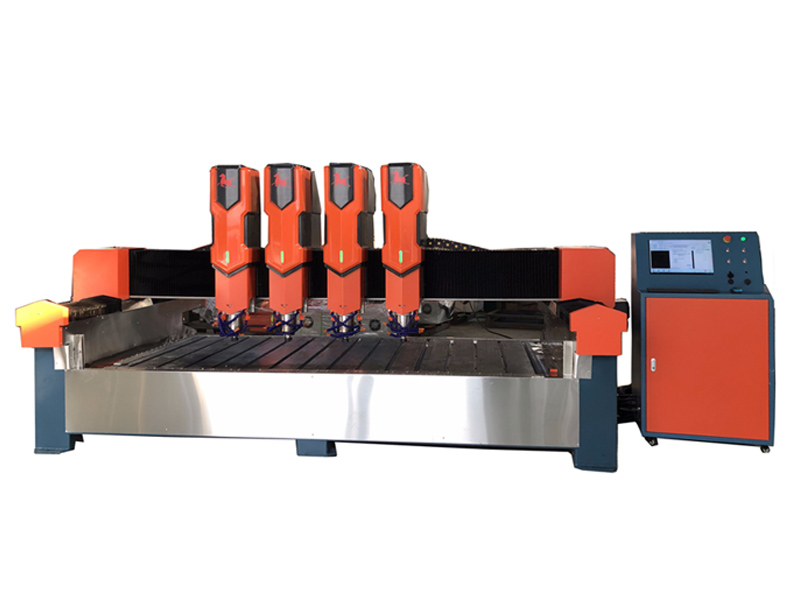

Model:TJCS-3015-4
Processing size:X3000mm, Y1500mm,Z350mm

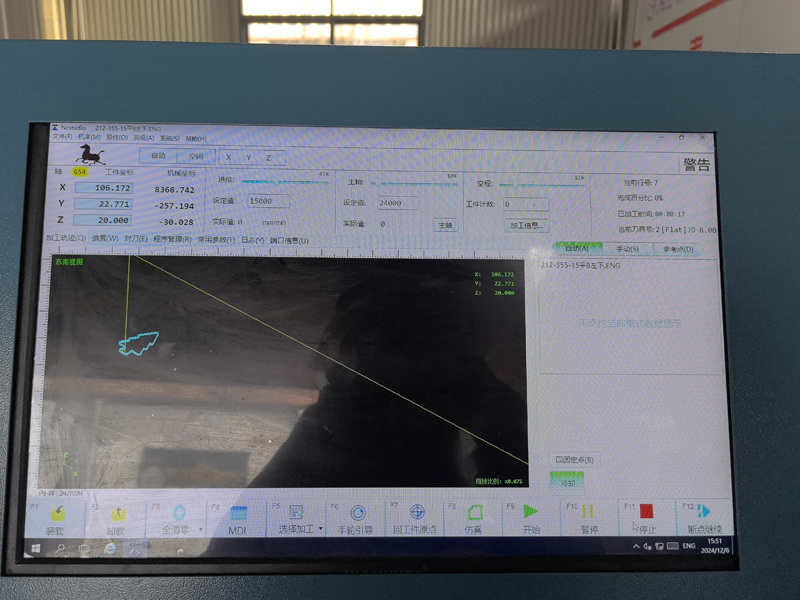

System:Weihong Ncstudio NC60 series

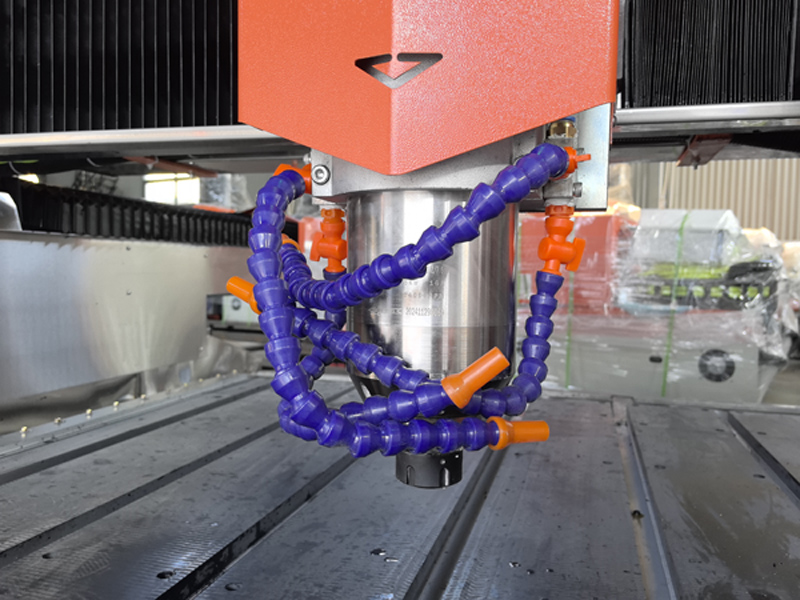

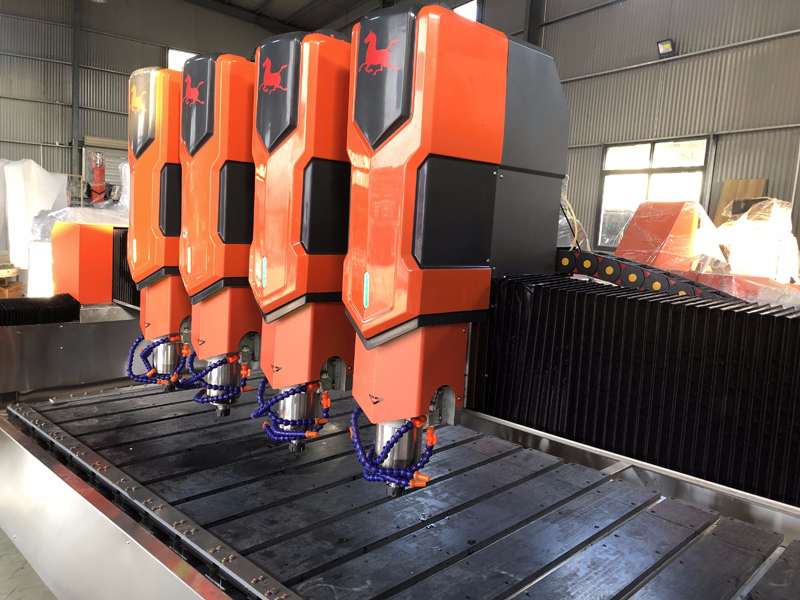

Spindle:7.5kW*4
Inverter:7.5KW*4
Motor:AC Servo-Fully servo
Travelling rail:X/Y 30, Z 25linear guide rail
Ball Screw System:2505,TBI-Taiwan brand,Ball Screw
Rack:Precision helical gear drive-Taiwan Brand
Cooling System:Water-Cooling with industrial Chiller CW5200
Lubrication system:Automatic Oil Filling System
Lathe Bed:Heavy-duty square tube welding bed, stainless steel sink,stainless cover
Processing worktable:Aluminum profile with PVC board and customized t-shaped rod for stone carving.
Spindle speed:18000-24000rpm
Dust protection:Fully enclosed
Instruction:G-code,ENG,NC,*u00,*mmg,*plt
Machine Size:≈L4000*W2200*H2000mm
Weight:≈3600kgs
Voltage:380V 50HZ 3P
