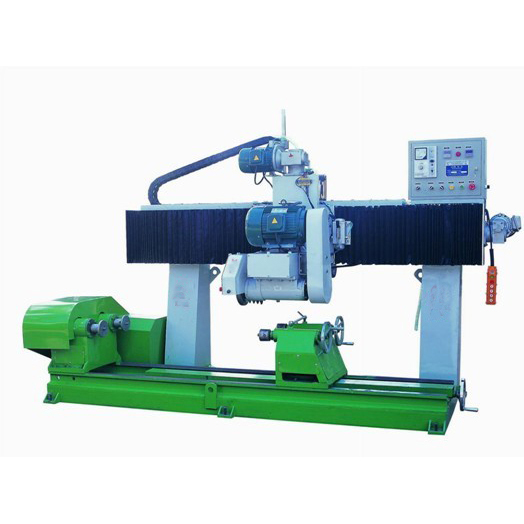

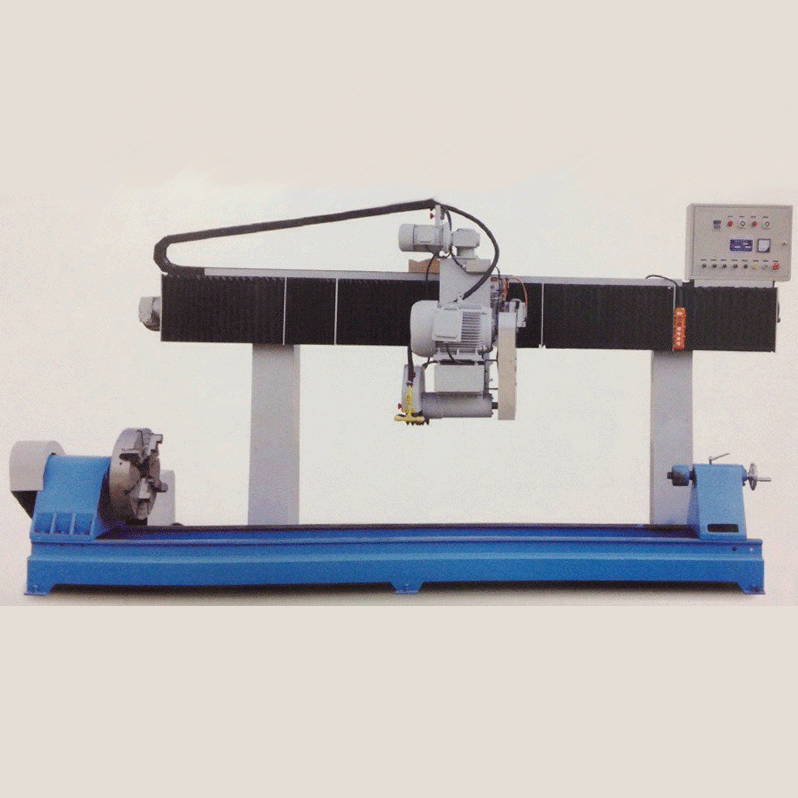

This machine has the function of auto shape cutting, cutting sides, grinding sides, moving backward, imitating straight stone-line, column, pillar, column head, column cap, whorl pillar, vase. On the base of Auto Shape Cutting, the machine has been adding the length of vertical grinder and cross beam, enlarge the length of rip rotate across in 360°as well as vertical180°. It can shape and process arc stone-line with the series shaking working platform. It can process the column, column head, column cap, whorl pillar, vase and other special art craft with series of bed spare parts. Its electric system adopted advanced electric component world wild, it runs nicety and stable with high quality and performance. It is the first choice for the stone art carving and material factories because of its perfect on structure, hardness and nicety.
| Model |
| TJCZ-2 | TJCZ-3 |
| Max. Cutting Length | mm | 1800 | 3000 |
| Max. Cutting Diameter | mm | Ф200 | Ф500 |
| Blade Diameter | mm | Ф350～Ф400 | Ф500 |
| Main Motor Power | kW | 7.5 | 11 |
| Gross Power | kW | 10.1 | 16.3 |
| Exhausted Water | m3/h | 3 | 3 |
| 总重量 | kg | 1100 | 2200 |
| Voltage | V | 380 | 380 |
| Frequency | Hz | 50 | 50 |
| Overall Dimensions(L*W*H) | mm | 3010*1020*1500 | 4500*1150*2200 |
Making the mould first, the shapes of the final product surface you need.
