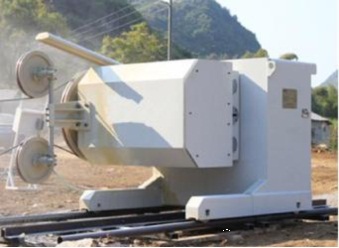

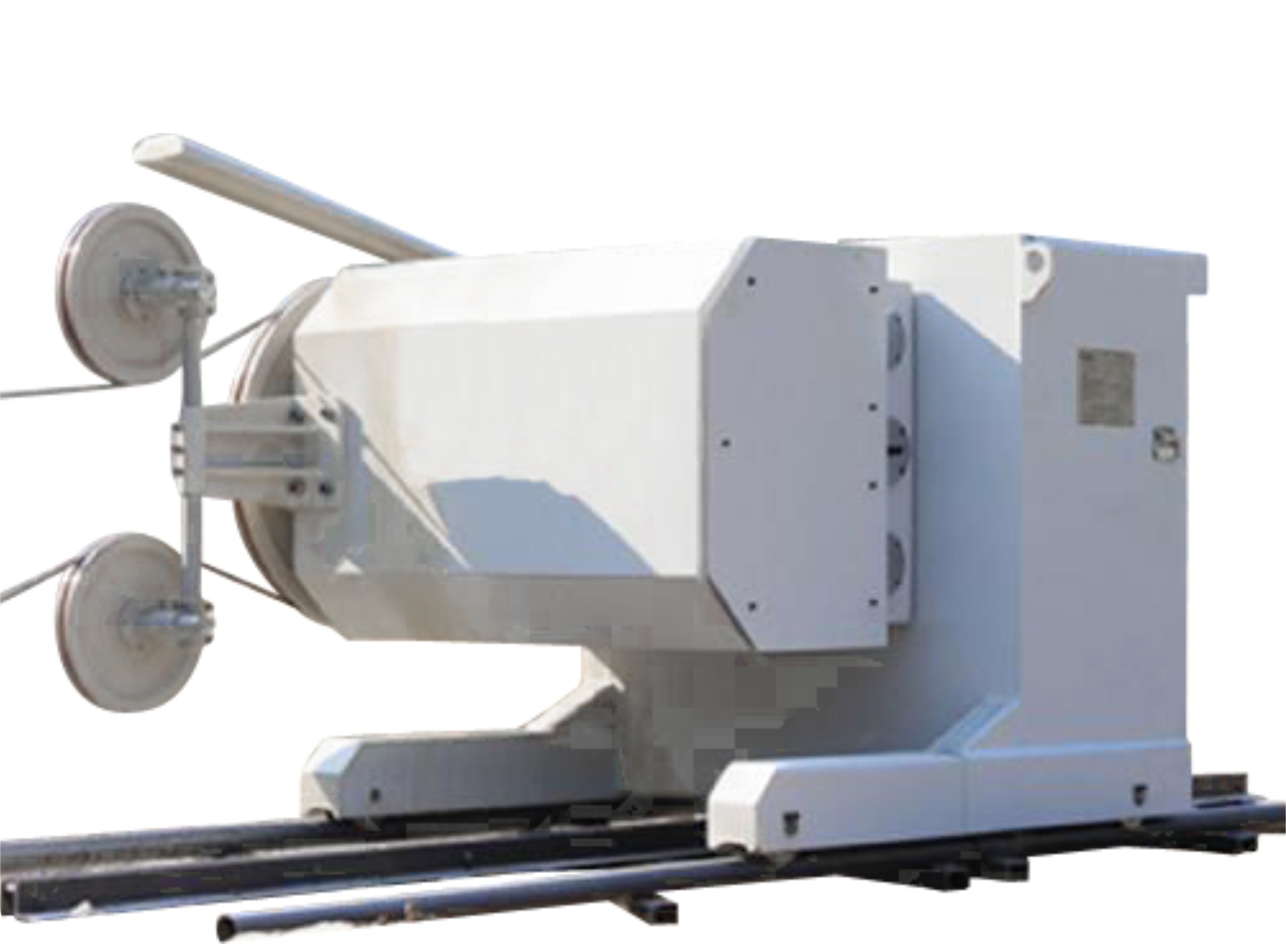

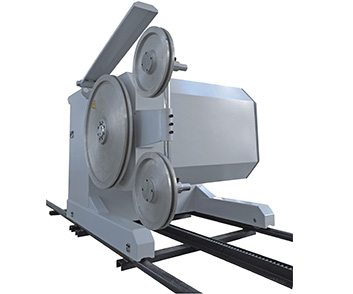

TJTB-37/45/55/75/90/95 KW Quarry Diamond Wire Saw Machine for Granite or Mable

Adopt to dual frequency conversion control system design, with fully automatic constant tension control system, fast running system, automatic protection function and automatic control function of cutting process, the machine can automatically adjust the wire saw feed rate based on its own load, to maintain the tension of balanced during the diamond wire rope in the operating process,thereby extending the life of diamond wire rope and to ensuring the continuity of the cutting process

Model		TJTB-37	TJTB-45	TJTB-55	TJTB-75	TJTB-90	TJTB-95
Driving Power	kW	37kw=50HP	45kw=65HP	55kw=74HP	78.5	90	95
Total Power	kW	40	48	58	75kw=100HP	95	100
Feeding Power	kW	0.75	0.75	1.5	2.2	2.2	2.2
Rotary Cutting Head Motor Power	kW	0.75	0.75	0.75	1.1	0.75	0.75
Cutting Head Lateral Moving Motor Power	kW	0.55	0.55	0.55	0.75	0.75	0.75
Cutting Head Rotation	°	360	360	360	360	360	360
Cutting Head Adjustment Distance	mm	400	400	400	400	450	450
Lateral Movement Of Cutting Head	mm	1800	1800	1800	1800	1800	1800
Main Guide Wheel Diameter(Granite)	mm	800	800	800	800	800 (Granite) 900（Marble）	800
Main Guide Wheel Diameter(Marble)	mm	900	900	900	900		900
Rail	mm	2000*3	2000*3	2000*3	2000*3	2*3pcs	2000*3
Rotation Speed	r/min	960	960	960	960	960	960
Linear Speed	m/s	0～40	0～40	0～40	0～40	0-40	0～40
Wire tension		Auto-controlled	Auto-controlled	Auto-controlled	Auto-controlled	Auto-controlled	Auto-controlled
Allowable Working Temperature	° / ℃	-15～+40	-15～+40	-15～+40	-15～+40	'-15°C to +40°	-15～+40
Power Voltage	V	380±10%	380±10%	380±10%	380±10%	AC 380±10% & 50HZ	380±10%
Power Frequency	HZ	50	50	50	50		50
Overall Dimension / size(LWH)	mm	170015001400	180015001400	180016001400	190016001400	L=1900, W=1600, H=1500	190016001500
Net Weight	g / kg	2000	2500	2800	3500	2.8	2800

We can ensure to offer you the good quality products in very reasonable and competitive price, also the full service all the time.
