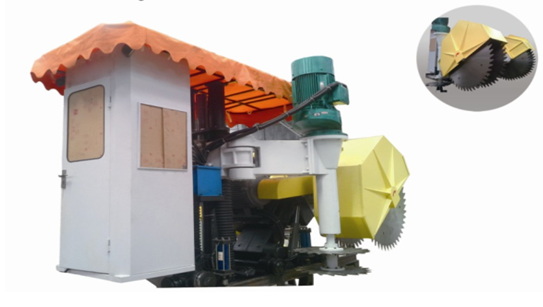

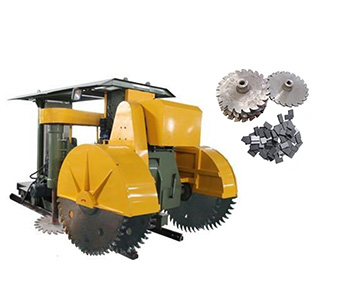

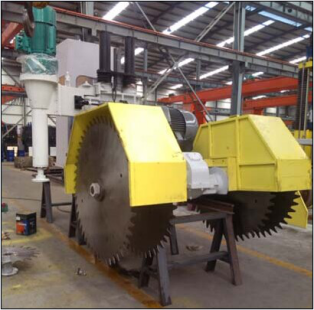

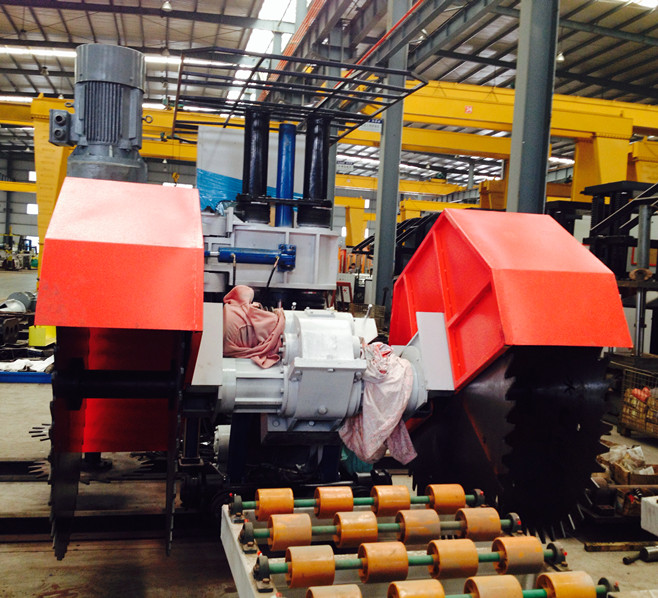

1. Suitable for brick cutting of sandstone, tufa, limestone etc. which ready for building construction.
2. With the vertical blade and horizontal blade running in the same time, the capacity up to 6000pcs/12H for 400*200*200mm brick.
| Model | TJSN-1400 | |
| Vertical Motor power | kw | 55 |
| Horizontal Motor power | kw | 30 |
| Vertical blade diameter | mm | 1400 |
| Horizontal blade diameter | mm | 700 |
| Number of blade | pcs | 1-6 |
| Blade thickness | mm | 8 |
| Max. brick size | mm | 400*200*200 (Adjustable) |
| Max.Cutting Depth | mm | 50 |
| Max. Lifting Stroke | mm | 950 |
| Max. Moving Stroke | mm | 240 |
| Total Power | Kw | 93 |
| Overall dimensions(L*W*H)) | mm | 3600X2350X2600 |
Various of other stone machines and tools for quarry work are offered here as well, welcome to view our website for further checking. Including generator, forklift, wheel loader, etc.
Good quality and in competitive price now.
