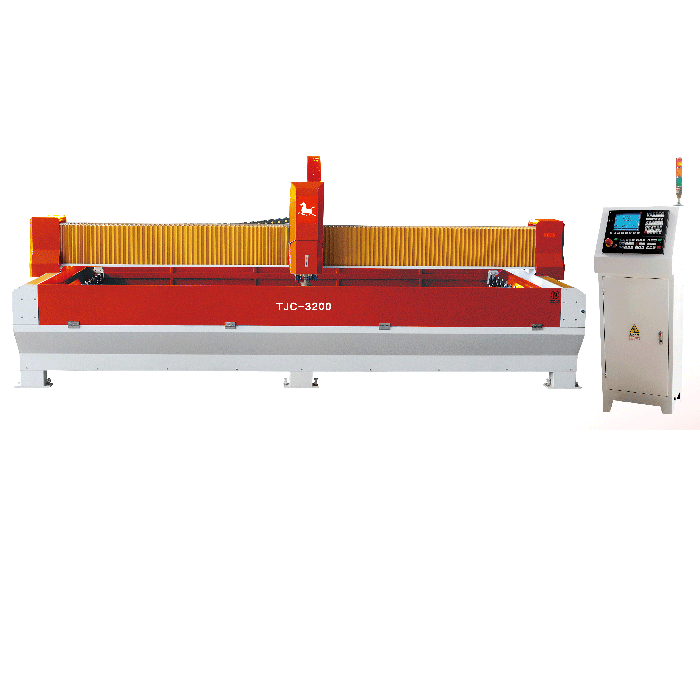

1. It is multi-function stone processing machine which are adopted the most technology in domestic and foreign, combined with the processing in current market. It can process in artificial stone, stone and ceramic plates in one production line for drilling, milling, profiling, grinding, polishing. According to the different models.
2. It adopts portal struction with more strong and stable
3. the main motor adopted high-speed spindle.
4. The movement speed is adopted by inverter control.
5. it can be changed the tools automatic according the processing steps
6. The machine is combined with vacuum clamping.
7. It is simply to operate with fast processing speed and high precision.
Processing length | 3200MM | |
Processing Width | 1500MM | |
Working thickness | <50MM | |
Milling cutter diameter | Φ10-Φ25MM | |
Drilling wheel diameter | Φ10-Φ50MM | |
Shapping wheel diameter | Φ60-Φ80MM | |
Polishing wheel diameter | Φ50-Φ100MM | |
Main motor power | 5.5KW | |
Total power | 9.5 kw | |
Outline dimension | 5300X2650X2200MM | |
Weight | 3T | |
Containing | one set of machine needs one 20 GP container. |
