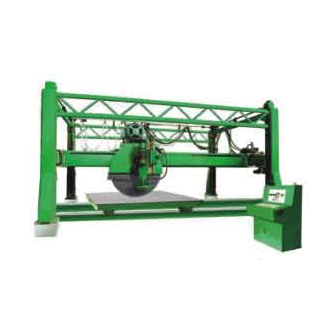

TJSF-3500 Four-pillars two-way stone cutting machine

This machine is special for cutting marble block, the main machine of marble slab production line which can cut out the stone blocks to slabs with certain thickness. Vertical and horizontal cutting. Using diamond disk blade, it is automatically controlled by programmable control system and hydraulic transmission, featuring reliable performance and high cutting efficiency.

Model
TJSF-3500
Max. Block Sizemm3500*2200*2200
Thickness Of Slabmm8~80
Width Of Slabmm250~600
Diameter Of Vertical BlademmΦ900~Φ1600
Diameter Of Horizontal BlademmΦ400~Φ600
Elevating Speed Of Bridge Standmm/min180
Size Of Truck(LXW)mm2500*2100
Overall Dimensions(LXWXH)mm7100*5500*5160
Total PowerkW117
Total WeightkW18000
Special for cutting marble tile. Such as 60*120cm, 30*120cm, etc.
