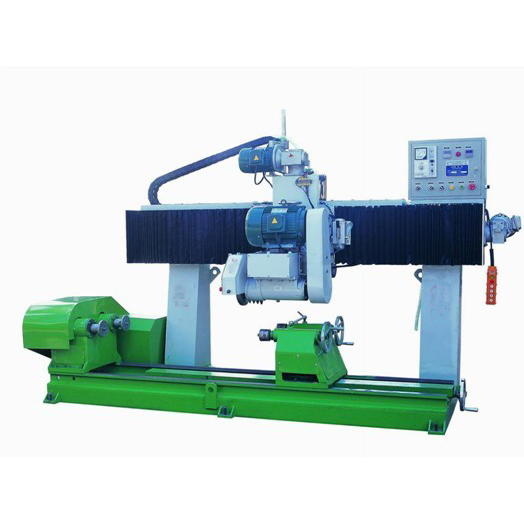

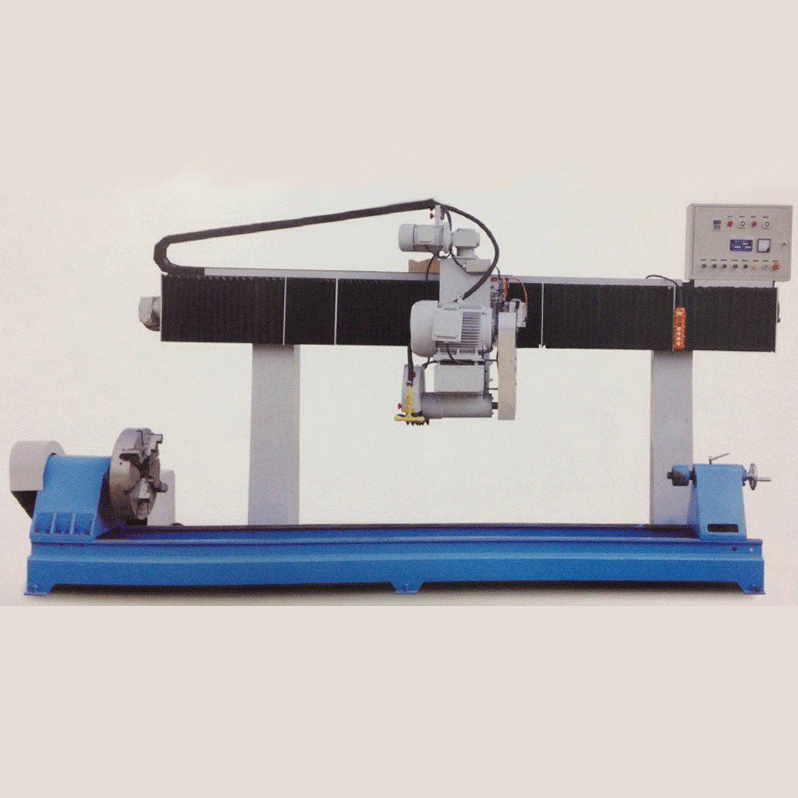

TJCZ-2/3 Column Cutting Machine


This machine has the function of auto shape cutting, cutting sides, grinding sides, moving backward, imitating straight stone-line, column, pillar, column head, column cap, whorl pillar, vase. On the base of Auto Shape Cutting, the machine has been adding the length of vertical grinder and cross beam, enlarge the length of rip rotate across in 360°as well as vertical180°. It can shape and process arc stone-line with the series shaking working platform. It can process the column, column head, column cap, whorl pillar, vase and other special art craft with series of bed spare parts. Its electric system adopted advanced electric component world wild, it runs nicety and stable with high quality and performance. It is the first choice for the stone art carving and material factories because of its perfect on structure, hardness and nicety.
Model
TJCZ-2TJCZ-3
Max. Cutting Lengthmm18003000
Max. Cutting DiametermmФ200Ф500
Blade DiametermmФ350~Ф400Ф500
Main Motor PowerkW7.511
Gross PowerkW10.116.3
Exhausted Waterm3/h33
总重量kg11002200
VoltageV380380
FrequencyHz5050
Overall Dimensions(L*W*H)mm3010*1020*15004500*1150*2200
Making the mould first, the shapes of the final product surface you need.
