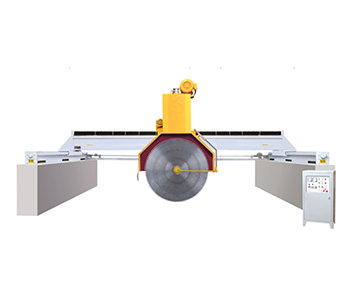

TJSJ2200/2500/2800 adopts big span bridge and beam structure. The crossbeam and side beam are sealed adopt style of feed lift to feed lift to achieve smooth and quick reamer rise, and slow feed. The moved speed of automatic cutting can be adjusted by frequency according to customer’s requirement. The slabs are directly installed on the ground to save costs of maintenance. This machine works accurately with stable performance, high automatic and high efficiency. Its installation, operation and maintenance are very simple. It suits the development of stone industry.
Note: the 360°rotating worktable can be selected if customer requires.
Name | Unit | A Type | B Type | Four Columns A Type | Four Columns B Type |
Max.Blade Size | mm | Φ2200/Φ2500/Φ2800 |
Max.Processing Length | mm | 2800/2500/2200 | 3600/3300/3000 | 3800/3500/3200 | 4300/4000/3700 |
Max. Processing Width | mm | 2200 |
Max.Lifting Stroke | mm | 1350 |
Water Consumption | m3/h | 15 |
Main Motor Power | kW | 37/45 |
Total Power | kW | 47/55 |
Overall Size | mm | 6900X4300X3700 | 7800X4300X3700 | 8000X4300X3700 | 8500X4300X3700 |
Total Weight | kg | 11000 | 11500 | 16000 | 16500 |
We are the total solution supplier of stone machines and tools. For other types of machines, please turn to the product catalog on our company website.
