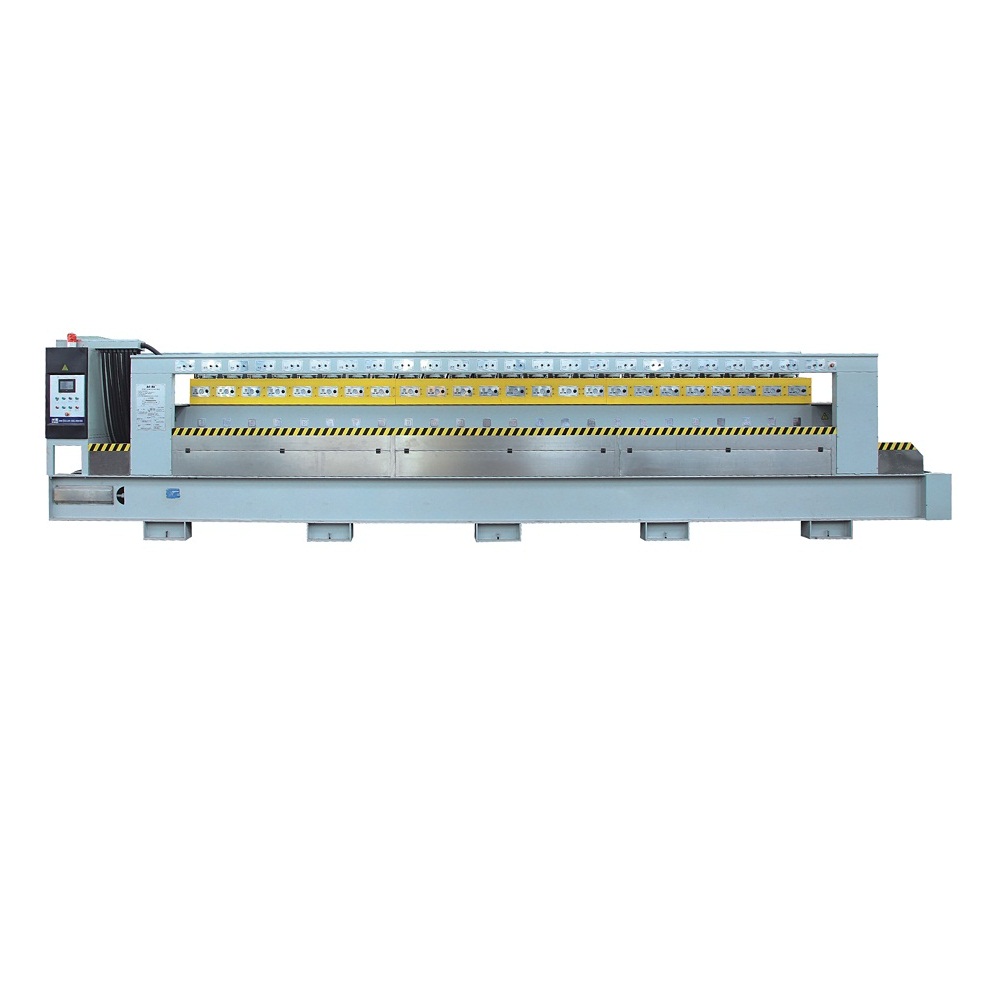

Special for polishing the granite tile, width as 1200mm, can be customized in different width then.
For the whole set, it includes the one loading table and one unloading table, one input conveyor, two output normal conveyor, one dryer, one gasholder, one air compressor.
For the model, it is polishing with resin polishing plates.
Suitable to India market.
Name | unit | TJHLS-12C | TJHLS-16C | TJHLS-20C | TJHLS-24C |
No.of heads | N° | 12 | 16 | 20 | 24 |
Useful working width | mm | 400-1200 | 400-1200 | 400-1200 | 400-1200 |
Useful working thickness | mm | 15-30 | 15-30 | 15-30 | 15-30 |
Belt advancement speed | mm/min | 0-2000 | 0-3200 | 0-3200 | 0-3200 |
Spindle motor power | kw | 7.5 | 7.5 | 7.5 | 7.5 |
Total power | kw | 96 | 126 | 156 | 186 |
Water consumption | m³/h | 17 | 20 | 23 | 25 |
Overall dimensions(L×W×H) | mm | 7500×2150×2200 | 8800×2150×2200 | 10200×2150×2200 | 11200×2150×2200 |
